Galvanize Steel Sheet Specification Color Ppgi Coil Material

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	25 Metric Ton
Delivery Time:	30 Days

Contact Now

Additional Info

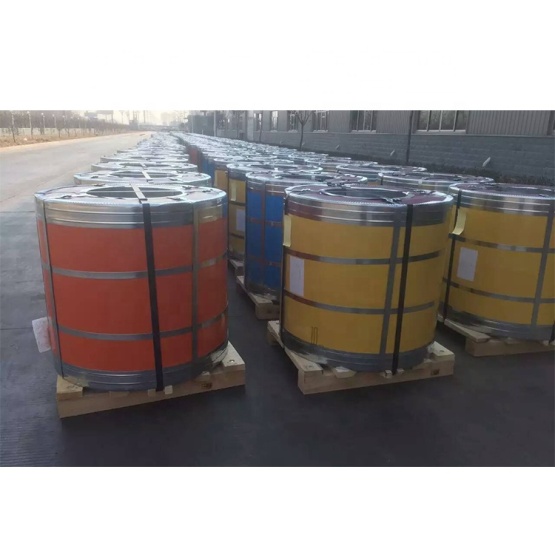

Packaging: Seaworthy standard export packing . CARDBOARD SLEEVES, STEEL SHEET WRAPPED OUTSID, FIXED BY STEEL BELT.

Productivity: 300000

Brand: XINGHAN

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 500000

Certificate: ISO 9001:2008/SGS/BV

Port: TIANJIN, CHINA,QINGDAO

Product Description

prepainted galvanized steel coil Application
It can be widely used in transportation, light industry, civil usage and farming. It is also the perfect building material in construction for making roofing tile, steel profiles for wall partition, T-bar, studs, fireproof door, air conditioning duct and home appliance.

Galvanize Steel Sheet Specification Color Ppgi Coil Material

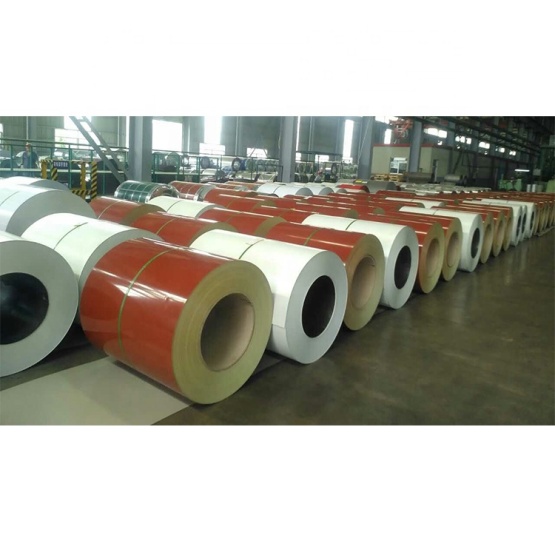

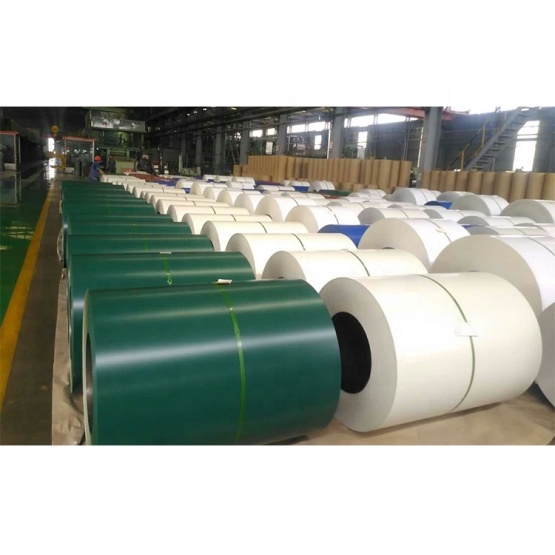

Pre painted galvanized steel coils (PPGI)

CONTENTS	PREPAINTED GALVANIZED – PPGI	PREPAINTED GALVALUME – PPGL
BASE METAL	GALVANIZED	GALVALUME / ALUZINC
STANDARDS	JIS G 3312-CGCC, CGC340-570,( 57534801,G550),	JIS G 3312-CGLCC, CGLC340-570,( 57534802,G550),
STANDARDS	ASTM A -755M CS-B, SS255-SS550	ASTM A -755M CS-B, SS255-SS550
THICKNESS	0.14~2.0 mm	0.14~2.0 mm
Width	750~1500 mm	750~1500 mm
Coil ID	508/610 mm	508/610 mm
Substrate	Soft, Medium, Hard	Soft, Medium, Hard
Coating Mass	Z 40-275 (g/m2)	AZ 40-150 (g/m2)
Paint Systems	Primers: Epoxy, PU	Primers: Epoxy, PU
	Top Coating:	Top Coating:
	Polyester (RMP/PE)	Polyester (RMP/PE)
	Silicon Modified Polyester (SMP)	Silicon Modified Polyester (SMP)
	Poly Vinyl Di Flouride (PVDF)	Poly Vinyl Di Flouride (PVDF)
	Back Coating: Epoxy, Polyester, PU	Back Coating: Epoxy, Polyester, PU
Coating	20 – 50 Microns	20 – 50 Microns
Colours	As Per RAL Chart/Customer requirements.	As Per RAL Chart/Customer requirements.
Surface Finishes	Glossy and Matte	Glossy and Matte
Cut to length	200mm-5000mm	200mm-5000mm
Capacity	1,500,000.00 Ton / year	1,500,000.00 Ton / year
Packing	Sea Worthy Export Packaging	Sea Worthy Export Packaging
Loading Port	Tianjin Port/Jingtang Port/Shanghai Port	Tianjin Port/Jingtang Port/Shanghai Port
