New product Structural use Galvanized Steel Coil from China

New product Structural use Galvanized Steel Coil

Additional Info

Packaging: Seaworthy standard export packing . CARDBOARD SLEEVES, STEEL SHEET WRAPPED OUTSID, FIXED BY STEEL BELT.

Productivity: 300000

Brand: XINGHAN

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 500000

Certificate: ISO 9001:2008/SGS/BV

Port: TIANJIN,CHINA,QINGDAO

Product Description

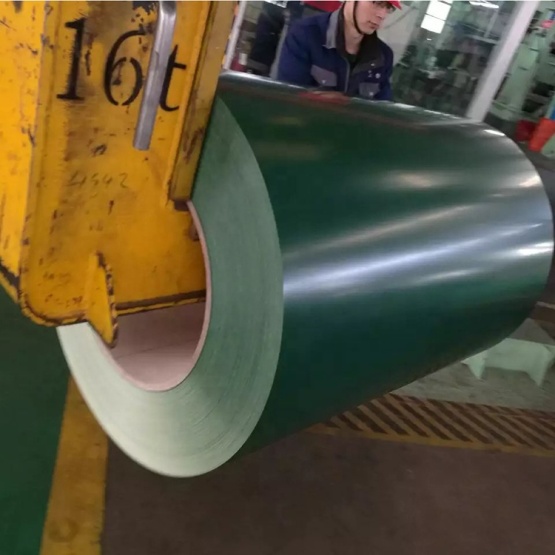

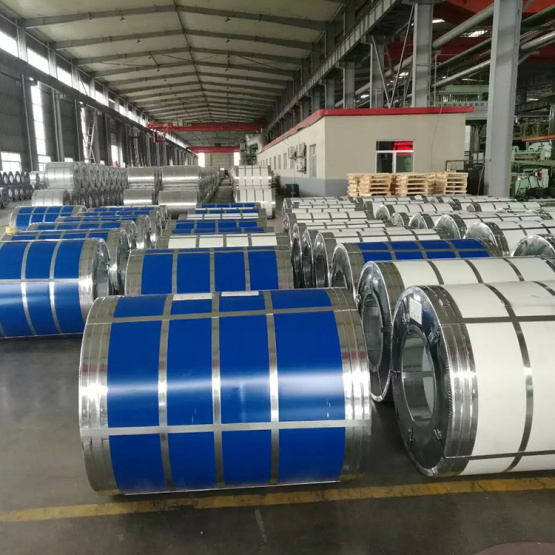

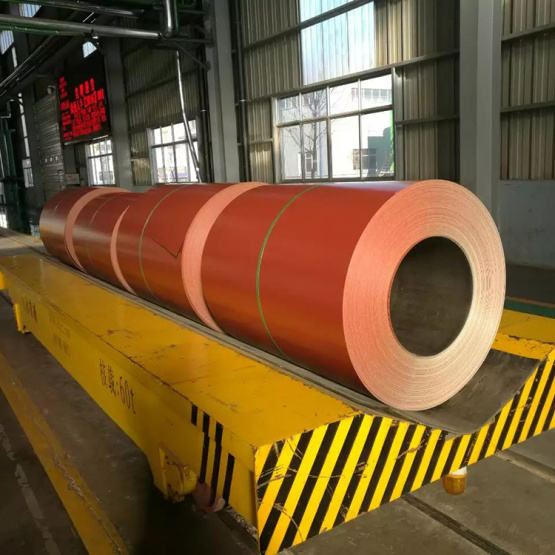

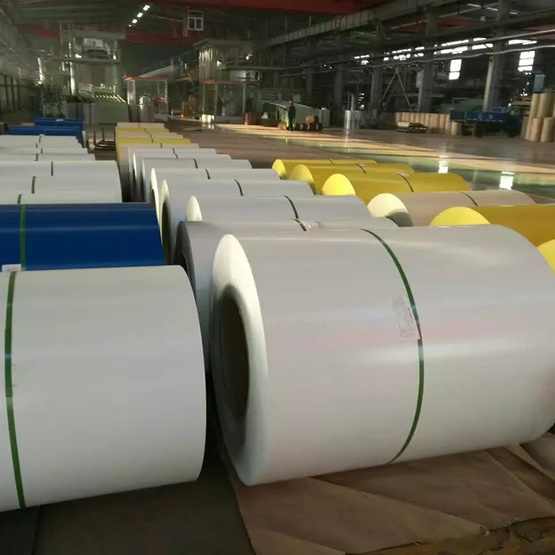

New product Structural use Color Coated Galvanized Steel Coil

Pre painted galvanized steel coils (PPGI)

CONTENTS	PREPAINTED GALVANIZED – PPGI	PREPAINTED GALVALUME – PPGL
BASE METAL	GALVANIZED	GALVALUME / ALUZINC
STANDARDS	JIS G 3312-CGCC, CGC340-570,( 57534706,G550),	JIS G 3312-CGLCC, CGLC340-570,( 57534707,G550),
STANDARDS	ASTM A -755M CS-B, SS255-SS550	ASTM A -755M CS-B, SS255-SS550
THICKNESS	0.14~2.0 mm	0.14~2.0 mm
Width	750~1500 mm	750~1500 mm
Coil ID	508/610 mm	508/610 mm
Substrate	Soft, Medium, Hard	Soft, Medium, Hard
Coating Mass	Z 40-275 (g/m2)	AZ 40-150 (g/m2)
Paint Systems	Primers: Epoxy, PU	Primers: Epoxy, PU
	Top Coating:	Top Coating:
	Polyester (RMP/PE)	Polyester (RMP/PE)
	Silicon Modified Polyester (SMP)	Silicon Modified Polyester (SMP)
	Poly Vinyl Di Flouride (PVDF)	Poly Vinyl Di Flouride (PVDF)
	Back Coating: Epoxy, Polyester, PU	Back Coating: Epoxy, Polyester, PU
Coating	20 – 50 Microns	20 – 50 Microns
Colours	As Per RAL Chart/Customer requirements.	As Per RAL Chart/Customer requirements.
Surface Finishes	Glossy and Matte	Glossy and Matte
Cut to length	200mm-5000mm	200mm-5000mm
Capacity	1,500,000.00 Ton / year	1,500,000.00 Ton / year
Packing	Sea Worthy Export Packaging	Sea Worthy Export Packaging
Loading Port	Tianjin Port/Jingtang Port/Shanghai Port	Tianjin Port/Jingtang Port/Shanghai Port
